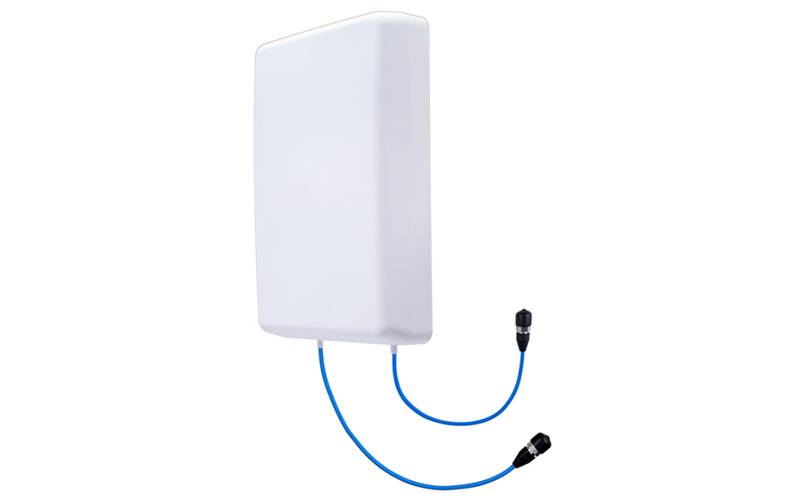

772-600-6000Low Profile Ultra Wideband Panel Mount Directional MIMO Antenna
-155dBc PIM, 600 – 960 / 1695 - 2700 / 3300 – 4000 / 4900-6000 MHz, IP67
DESCRIPTION
772-600-6000 is PIM-Rated, Ultra Wideband Panel Mount Directional MIMO Antenna that allows facilities to support all cellular and non-cellular frequency bands from 600 MHz to 6000 MHz, including CBRS and LTE-LAA. This MIMO Antenna has exceptional directivity for all the applications with one antenna. Its Low-Profile Structure is perfect for any In-Building Applications.
FEATURES
- Superior Performance across all bands from 600MHz to 6000MHz
- Covers Cellular, CBRS, LTE-LAA & Wi-Fi/WiMAX bands
- Low-Profile, Light Weight Antenna
- High Gain, Low VSWR
- Low PIM performance
- Corrosion resistant and Anti-aging material
- RoHS Complaint
- In Stock to low lead time delivery
Electrical Specification

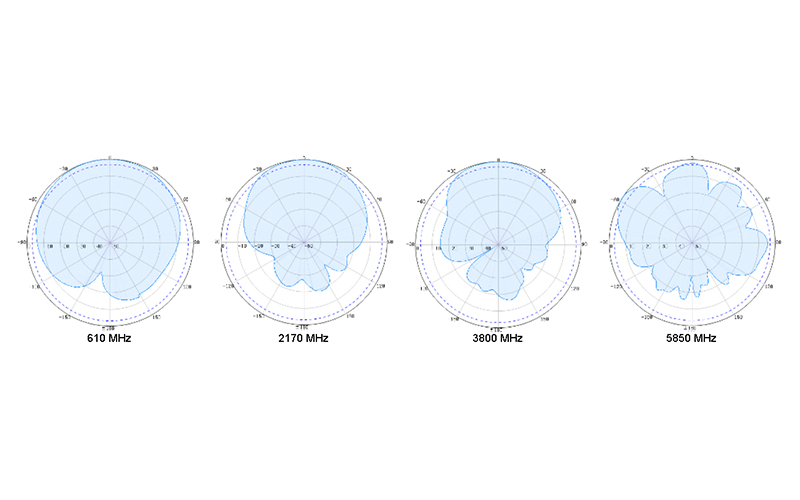

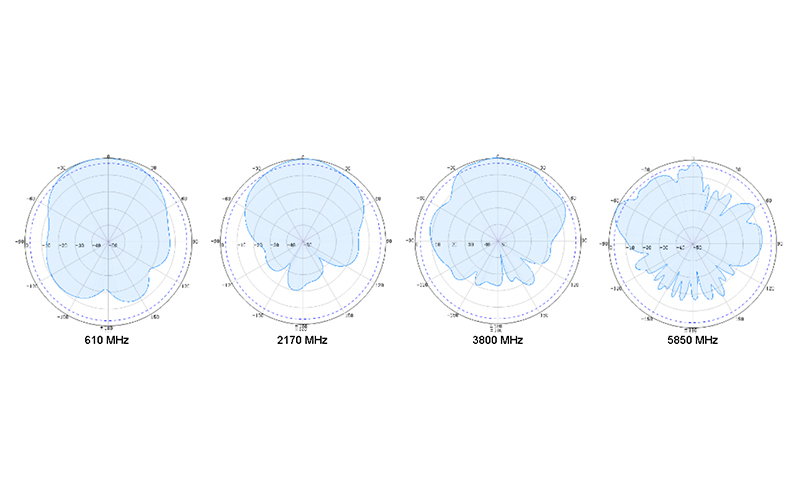

| Frequency Bands | 600-617 | 617-960 | 1695-2700 | 3300-4000 | 4900-6000 | ||
| Gain | 6.5 dBi | 7.5 dBi | 8.5 dBi | 8.0 dBi | 8.5 dBi | ||
| VSWR | ≤ 1.9 | ≤ 1.9 | ≤ 1.7 | ≤ 1.8 | ≤ 1.9 | ||
| Polarization | Horizontal + Vertical | ||||||
| Isolation | ≥ 11 dB | ≥ 12 dB | ≥ 20 dB | ≥ 24 dB | ≥ 24 dB | ||
| Front to Back Ratio | ≥ 7 | ≥ 7 | ≥ 13 | ≥ 10 | ≥ 10 | ||
| Horizontal Beamwidth | 100° | 90° | 65° | 45° | 23° | ||
| Vertical Beamwidth | 83° | 78° | 60° | 38° | 25° | ||
| Input Impedance | 50 Ohms | ||||||
| Max Power | 50 Watts | ||||||
| Lightning Protection | DC Ground | ||||||
| Intermodulation (PIM - 3rd) | -155 dBc (Typ) (2 Tones +43 dBm) | ||||||
Mechanical Specification
| Connectors | 2x 4.3-10(F) (Standard) |
| Environmental Class | IP65 |
| Mounting | Ceiling Mount |

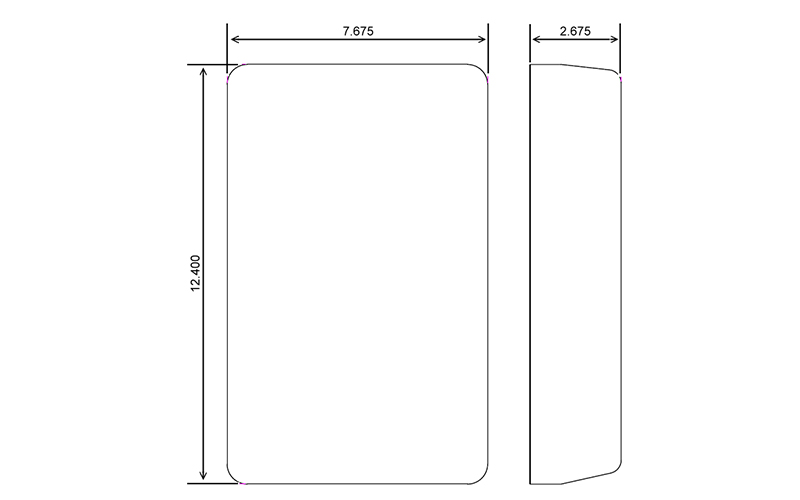

| Dimension | 12.400” x 7.675” x 2.675” |
| Weight | 1.50 lbs |
| Radome Material | ABS (UV Stabilized) |
| Radome Color | White (Standard) |
| Operating Temperature | -40°C to +65°C |
INSTALLATION RENDERING
ORDERING INFO:
| 4.3-10 Conn: | 772-600-6000-D43 |
| Type-N Conn: | 772-600-6000-N |
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
