PART #:

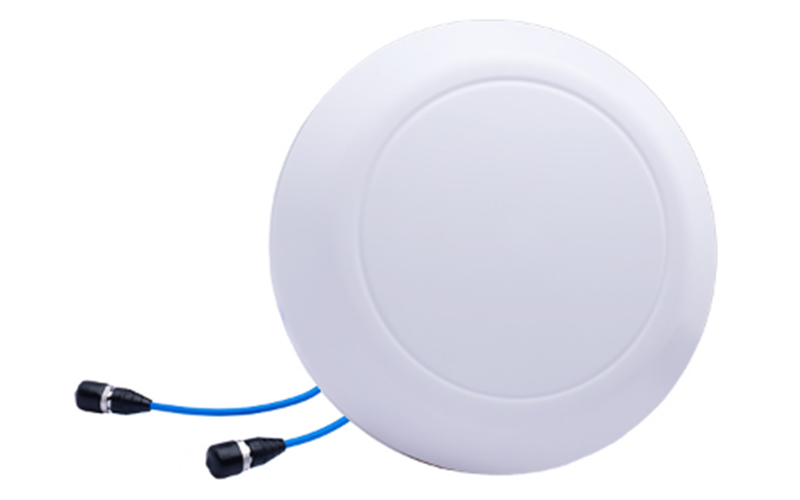

771-600-6000Low Profile Ultra Wideband Omni-Directional MIMO Antenna
-155dBc PIM, 617 – 960 MHz / 1695 - 2700 MHz / 3300 – 6000 MHz, IP65
DESCRIPTION
771-600-6000 is PIM-Rated, Ultra Wideband Omni-Directional MIMO Antenna that allows facilities to support all cellular and non-cellular frequency bands from 600 MHz to 6000 MHz, including CBRS and LTE-LAA. This MIMO Antenna has uniform coverage for all the applications with one antenna. Its Low-Profile Structure is perfect for any In-Building Applications.
FEATURES
- Superior Performance across all bands from 600MHz to 6000MHz
- Covers Cellular, CBRS, LTE-LAA & Wi-Fi/WiMAX bands
- Low-Profile, Light Weight Antenna
- High Gain, Low VSWR
- Low PIM performance
- Corrosion resistant and Anti-aging material
- RoHS Complaint
- In Stock to low lead time delivery
Electrical Specification
| Frequency Bands | 617-806 | 806-960 | 1695-2700 | 3300-4000 | 4000-6000 | |
| Gain | 3.0 dBi | 4.0 dBi | 4.5 dBi | 6.0 dBi | 6.5 dBi | |
| VSWR | ≤ 1.9 | ≤ 1.8 | ≤ 1.8 | ≤ 1.8 | ≤ 1.8 | |
| Polarization | Linear H / V for each Radiator | |||||
| Isolation | ≥ 19 dB | ≥ 23 dB | ||||
| Horizontal Beamwidth | 360° | |||||
| Vertical Beamwidth | 95° | 90° | 46° | 38° | 30° | |
| Input Impedance | 50 Ohms | |||||
| Max Power | 50 Watts | |||||
| Lightning Protection | DC Ground | |||||
| Intermodulation (PIM - 3rd) | -155 dBc (Typ) (2 Tones +43 dBm) | |||||
Mechanical Specification
| Connectors | 2x 4.3-10(F) (Standard) |
| Environmental Class | IP65 |
| Mounting | Ceiling Mount |
| Dimension | ø8.450” x 1.850” |
| Weight | 1.00 lb |
| Radome Material | ABS (UV Stabilized) |
| Radome Color | White (Standard) |
| Operating Temperature | -40°C to +65°C |

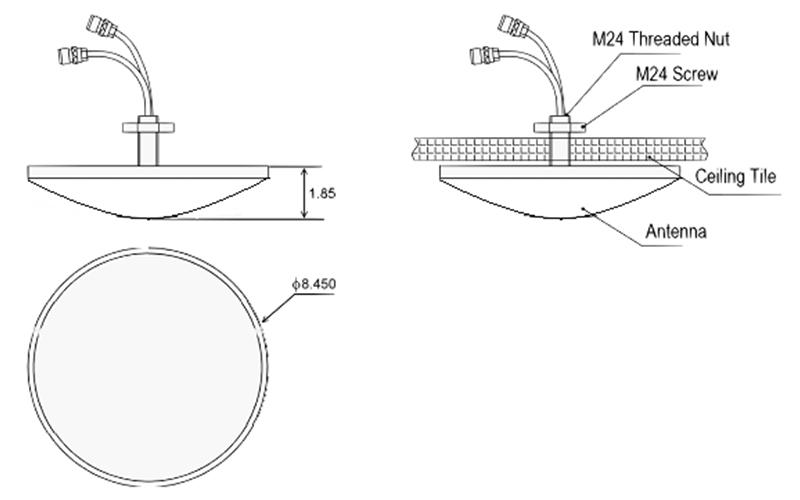

INSTALLATION RENDERING
ORDERING INFO:
| 4.3-10 Conn: | 771-600-6000-D43 |
| Type-N Conn: | 771-600-6000-N |
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
