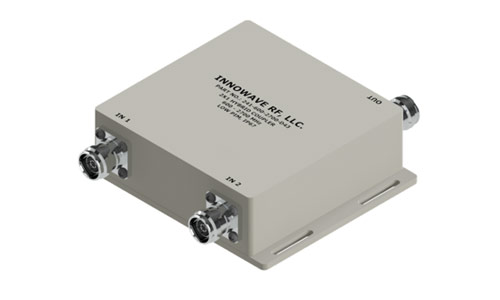

241-600-2700Low-PIM 2×1 Hybrid Coupler (Internally Terminated 2nd Output)
600-2700 MHz, -161dBc, IP67
DESCRIPTION
241-600-2700 is a 3 port Hybrid Coupler that can be used to combine any 2 signals in the 600MHz – 2700MHz range. The 4th port internally terminated to a Low PIM 50Ω load. The combined or split signals will appear at the output port. These can be used over a wide range of temperature & environmental conditions. This Hybrid Coupler is rated for 40W applications. Higher wattage models are available on request.
FEATURES
- Combines or Split 2 signals in the 600MHz – 2700MHz
- Internally terminated to a Low PIM 50Ω load
- Best-in-class Isolation between the 2 signals
- Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
- Very low Insertion Loss
- RoHS Complaint
- Ease of Mounting with mounting holes / brackets
- Weatherproof for Outdoor use
- In Stock and Available Immediately
Electrical Specification
| Frequency Range: | 600MHz – 2700MHz |
| Coupling Loss: | 3.10 dB ± 0.5dB |
| Isolation: | 23.00 dB |
| Impedance: | 50 Ohms |
| Return Loss: | 20 dB |
| VSWR: | 1.22 |
| Power: | 40 Watts (Avg) |
| Intermodulation (PIM - 3rd): | -161 dBc (2Tones +43dBm) |

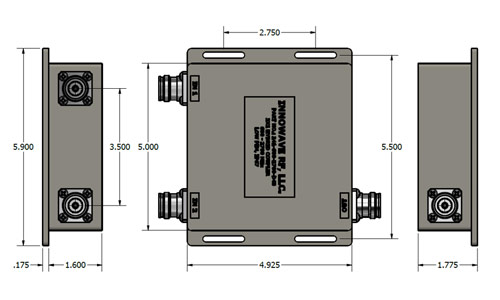

Mechanical Specification
| Connectors: | Type-N (N) / DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) |
| Housing Finish: | Aluminum Body |
| Mounting Method: | Mounting Hole |
| Temperature Range: | -35°C to 85°C |
| Weight: | 4.00 lbs |
| Humidity: | 100% |
| Environment: | IP67 |
ORDERING INFO:
Connector Configuration:
Part#:241-600-2700-*
* - See Connector Options
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
