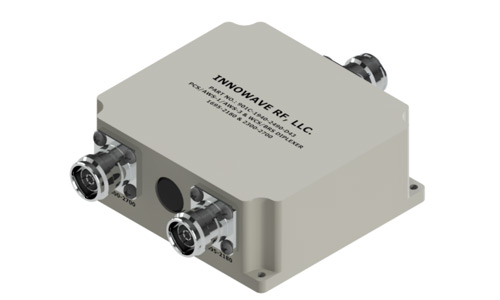

PART #: 901C-1940-2490

PCS/AWS-1/AWS-3 &WCS/BRS Combiner / Diplexer

1695-2180 & 2300-2700 MHz, -161dBc PIM, IP67

  • Splits or combines the PCS/ AWS-1 / AWS-3 Bands (1695MHz-2180MHz) and WCS/BRS Band (2300MHz–2700MHz)
  • Compact Design with Single/Stacked/Twin/Quad combiner model for tight space applications
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Low-PIM with High Power Handling
  • Available in 7/16 DIN, Mini-DIN and 4.3-10 Connectors
  • RoHS Complaint, Weatherproof / Outdoor unit
  • In Stock to low lead time delivery

BLOCK DIAGRAM FOR 901C-1940-2490

Electrical Specification

Frequency BandsPCS/AWS-1/AWS-3 Bands
Passband Insertion Loss0.20dB
@ 2300MHz-2700MHz
@ 1695MHz-2180MHz
Return Loss21dB
Impedance50 Ohms
Input Power100 Watts (Avg); 250 Watts (Peak)
DC Pass Current4000 mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)

Mechanical Specification

Connectors: 7/16 DIN (D) / Mini-DIN (MD)
4.3-10 (D43) / NEX-10 (X10)
Mounting Method:Mounting Panel
Temperature Range:-20°C to 70°C
Weight: 2.00 lbs
Relative Humidity:5% - 95%
Environment: IP67

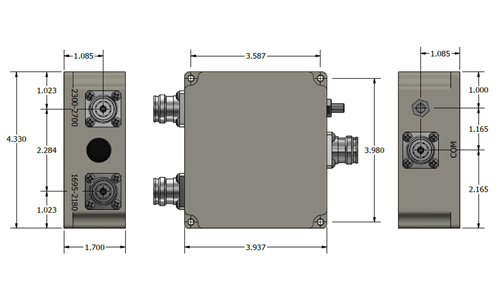

Single Model: Part#: 901C-1940-2490-*

* – Connector Option

Please contact our sales department at 737-200-7090 or for any custom requirements.

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
