772-600-6000

Low Profile Ultra Wideband Panel Mount Directional MIMO Antenna

-155dBc PIM, 600 – 960 / 1695 - 2700 / 3300 – 4200 / 4900-6000 MHz, IP67

772-600-6000 is PIM-Rated, Ultra Wideband Panel Mount Directional MIMO Antenna that allows facilities to support all cellular and non-cellular frequency bands from 600 MHz to 6000 MHz, including CBRS and LTE-LAA. This MIMO Antenna has exceptional directivity for all the applications with one antenna. Its Low-Profile Structure is perfect for any In-Building Applications.

FEATURES

  • Superior Performance across all bands from 600MHz to 6000MHz
  • Covers Cellular, CBRS, LTE-LAA & Wi-Fi/WiMAX bands
  • Low-Profile, Light Weight Antenna
  • High Gain, Low VSWR
  • Low PIM performance
  • Corrosion resistant and Anti-aging material
  • RoHS Complaint
  • In Stock to low lead time delivery

772-600-6000
772-600-6000-6
772-600-6000-5
772-600-6000-4

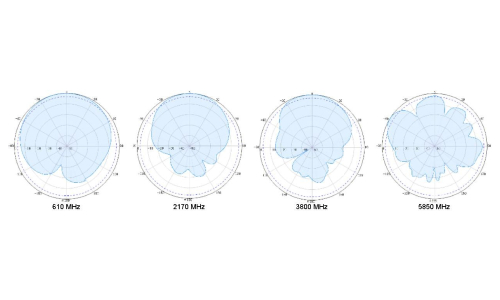

772-600-6000-3
772-600-6000-2

Electrical Specification

Frequency Bands600-617617-9601695-27003300-42004900-6000
Gain6.5 dBi7.5 dBi8.5 dBi8.0 dBi8.5 dBi
VSWR≤ 1.9≤ 1.9≤ 1.7≤ 1.8≤ 1.9
PolarizationHorizontal + Vertical
Isolation≥ 11 dB≥ 12 dB≥ 20 dB≥ 24 dB≥ 24 dB
Front to Back Ratio≥ 7≥ 7≥ 13≥ 10≥ 10
Horizontal Beamwidth100°90°65°45°23°
Vertical Beamwidth83°78°60°38°25°
Input Impedance50 Ohms
Max Power50 Watts
Lightning ProtectionDC Ground
Intermodulation (PIM - 3rd)-155 dBc (Typ) (2 Tones +43 dBm)

Mechanical Specification

Connectors2x 4.3-10(F) (Standard)
Environmental ClassIP65
MountingCeiling Mount
Dimension12.400” x 7.675” x 2.675”
Weight1.50 lbs
Radome MaterialABS (UV Stabilized)
Radome ColorWhite (Standard)
Operating Temperature-40°C to +65°C

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
