PART #:

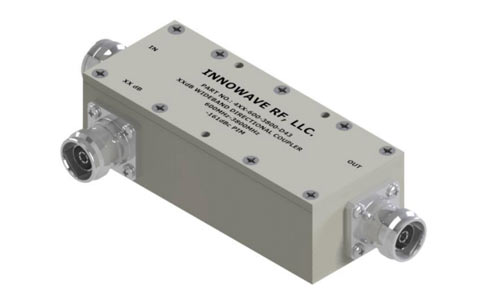

4XX-600-3800Wideband Directional Couplers
-161dBc PIM, 600-3800 MHz, IP67
DESCRIPTION
4XX-600-3800 Series of Wideband Directional Couplers are Low-PIM devices that operate from 600MHz – 3800MHz. It has excellent directivity and coupling flatness across the entire band. It also exhibits a very low insertion loss along with outstanding VSWR at all three ports. These units are weatherproof and suitable for extreme conditions. Available in different connector options.
FEATURES
- Operates from 600 MHz to 3800 MHz
- Covers 600MHz (Band 71) and CBRS band
- Low Insertion Loss and Low VSWR
- Excellent PIM rating, -161dBc
- RoHS Complaint
- Weatherproof / Outdoor unit
- In Stock to low lead time delivery
- Superior Construction and High Power Handling
- Available in DIN, Mini-DIN, 4.3-10 or Nex10 Connectors

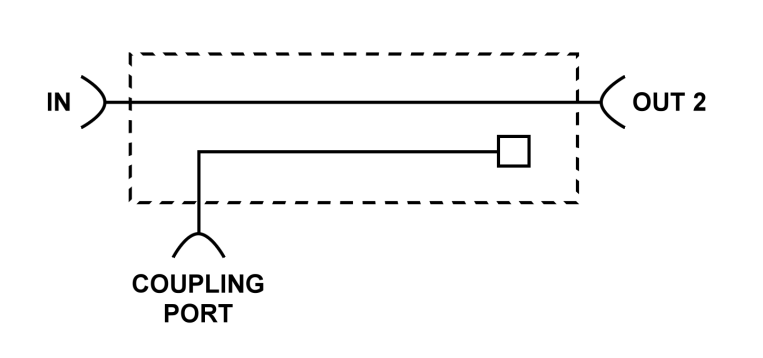

BLOCK DIAGRAM FOR DIRECTIONAL COUPLERS
PART ORDERING INFO:
4XX-600-3800-*
XX - Coupling Value
(Ex: 6dB -- 406; 30dB -- 430)
* - Connector Option
Electrical Specification
| Coupling Value | 5dB | 6dB | 7dB | 8dB | 10dB | 12dB | 15dB | 20dB | 30dB | 40dB | ||
| Frequency Bands | 600 MHz - 3800 MHz | |||||||||||
| Frequency Sensitivity(dB) | ±1.00 | ±1.20 | ±1.50 | ±1.75 | ||||||||
| Insertion Loss (dB) | ≤2.2 | ≤2.1 | ≤1.7 | ≤1.6 | ≤1.2 | ≤1.2 | ≤0.9 | ≤0.8 | ≤0.8 | ≤0.5 | ||
| Return Loss | -20 dB | |||||||||||
| Impedance | 50 Ω | |||||||||||
| Isolation (dB) | ≥ 20 | ≥ 21 | ≥ 22 | ≥ 23 | ≥ 25 | ≥ 27 | ≥ 30 | ≥ 35 | ≥ 45 | ≥ 50 | ||
| Intermodulation (PIM-3rd) | -161 dBc (2 Tones +43 dBm) | |||||||||||
| Input Power | 200 Watts (Avg); 500 Watts (Peak) | |||||||||||

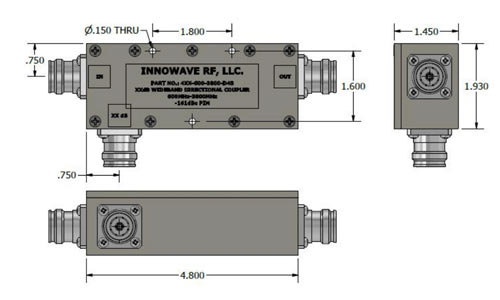

Mechanical Specification
| Connectors: | 7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Nex10 (X10) |
| Housing Finish: | Aluminum Body |
| Mounting Method: | Mounting Panel |
| Temperature Range: | -25°C to 75°C |
| Weight | 0.80 lb |
| Relative Humidity: | 5% - 95% |
| Environment: | IP67 |
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
