PART #:
4XX-555-2700Low-PIM Directional Couplers
-161dBc PIM, 555-2700 MHz, IP67
DESCRIPTION
4XX-555-2700 Series of Directional Couplers are Low-PIM devices that operate from 555MHz – 2700MHz. It has excellent directivity and coupling flatness across the entire band. It also exhibits a very low insertion loss along with outstanding VSWR at all three ports. These units are weatherproof and suitable for extreme conditions. Available in different connector options.
FEATURES
- Operates from 555 MHz to 2700 MHz
- Covers 600MHz (Band 71)
- Low Insertion Loss and Low VSWR
- Excellent PIM rating, -161dBc
- RoHS Complaint
- Weatherproof / Outdoor unit
- In Stock to low lead time delivery
- Superior Construction and High Power Handling
- Available in DIN, Mini-DIN, 4.3-10 or Nex10 Connectors

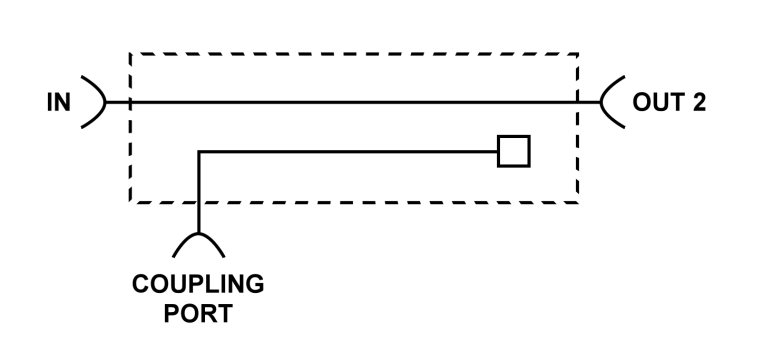

BLOCK DIAGRAM FOR DIRECTIONAL COUPLERS
PART ORDERING INFO:
4XX-555-2700-*
XX - Coupling Value
(Ex: 6dB -- 406; 30dB -- 430)
* - Connector Option
Electrical Specification
| Coupling Value | 5dB | 6dB | 7dB | 8dB | 10dB | 12dB | 15dB | 20dB | 25dB | 30dB | 35dB | 40dB |
| Frequency Bands | 555 MHz - 2700 MHz | |||||||||||
| Frequency Sensitivity(dB) | ±1.00 | ±1.20 | ±1.25 | ±1.50 | ||||||||
| Insertion Loss (dB) | ≤2.1 | ≤1.6 | ≤1.3 | ≤1.1 | ≤0.8 | ≤0.6 | ≤0.4 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | -21 dB | |||||||||||
| Impedance | 50 Ω | |||||||||||
| Isolation (dB) | ≥ 25 | ≥ 26 | ≥ 27 | ≥ 28 | ≥ 30 | ≥ 32 | ≥ 35 | ≥ 40 | ≥ 45 | ≥ 50 | ≥ 55 | ≥ 60 |
| Intermodulation (PIM-3rd) | -161 dBc (2 Tones +43 dBm) | |||||||||||
| Input Power | 200 Watts (Avg); 500 Watts (Peak) | |||||||||||

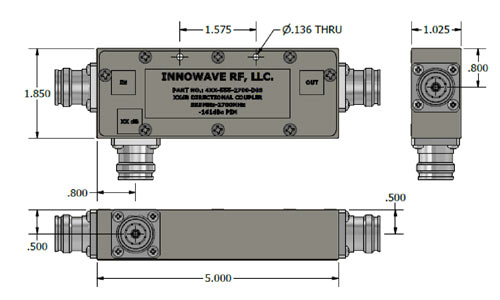

Mechanical Specification
| Connectors: | 7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Nex10 (X10) |
| Housing Finish: | Aluminum Body |
| Mounting Method: | Mounting Panel |
| Temperature Range: | -25°C to 75°C |
| Weight | 0.80 lb |
| Relative Humidity: | 5% - 95% |
| Environment: | IP67 |
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
