PART #:

231M-600-2700

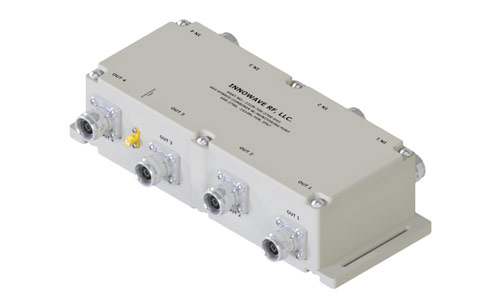

4X4 6dB Hybrid Combiner with Monitoring Port

-163dBc PIM, 600-2700 MHz, IP67

DESCRIPTION

231M-600-2700 is 4×4, 6dB Hybrid Combiner that can be used to combine or split any 4 signals in the 600MHz – 2700MHz range. The combined signals will appear at all the output ports. These are symmetric devices so Inputs and Outputs can be used interchangeably. A Monitoring Port is also available to check on the quality of the Output Signal. It can also be used to split one input signal into 4 output ports. The unused port must be always terminated with a 50Ω Load. These hybrid combiners can be used over a wide range of temperature and environmental conditions.

FEATURES

  • Splits or Combines 4 signals between 600 – 2700MHz
  • Best-in-class Isolation between the 4 ports
  • Monitoring Port – SMA (Female)
  • Very low Insertion Loss
  • Low-PIM & High Power Handling
  • RoHS Complaint
  • Weatherproof for Outdoor use
  • In Stock & Available Immediately
  • Ease of Mounting with mounting holes / brackets
  • Available in different Connector configurations

Electrical Specification

Frequency Range:600MHz – 2700MHz
Coupling Loss:6.20 dB ±0.80dB
Isolation:30.00 dB
VSWR:1.22
Impedance:50 Ohms
Input Power:500 Watts (Avg) / Port
Intermodulation (PIM – 3rd):-163 dBc
(2Tones +43dBm)
DC Path:IN PORT1 -> OUT PORT4
IN PORT2 -> OUT PORT2
IN PORT3 -> OUT PORT3
IN PORT4 -> OUT PORT1
(Max 6.5A AISG2 Conform)

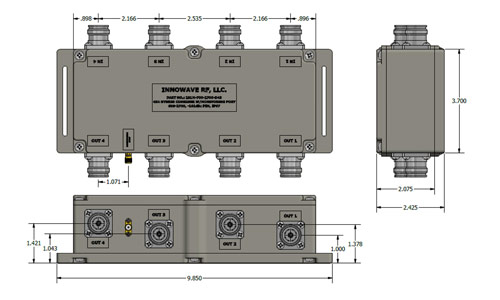

Mechanical Specification

Connectors:Type-N (N) / DIN (D) / Nex10 (X10)
Mini-DIN (MD) / 4.3-10 (D43)
Housing Finish: Aluminum Body
Mounting Method:Mounting Kit
Temperature Range:-20°C to 60°C
Weight: 3.50 lbs
Humidity:5% - 95%
Environment:IP67

ORDERING INFO:

Connector Configuration:

Part#:231M-600-2700-*

* - See Connector Options

Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only.
