PART #:

236X-600-2700

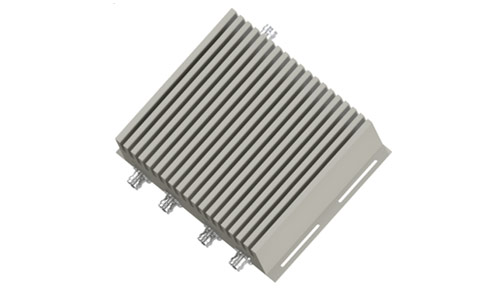

4X1 6dB Hybrid Combiner w/Internally Terminated Loads

-160dBc PIM, 600-2700 MHz, IP64

DESCRIPTION

236X-600-2700 is 4×1, 6dB Hybrid Combiner with 3 of the Output ports internally terminated with 50 Ohms loads. These can be used to combine any 4 signals in the 600MHz – 2700MHz range, including Band 71. The combined signals will appear at the output port. It can also be used to split one input signal into 4 output ports. The unused port must be always terminated with a 50Ω Load. These hybrid combiners can be used over a wide range of temperature. Outdoor model available on request.

FEATURES

  • Combines 4 signals between 600 – 2700MHz
  • Designed to include 600MHz (Band71)
  • Best-in-class Isolation between the 4 ports
  • Very low Insertion Loss
  • Low-PIM & High Power Handling
  • RoHS Complaint
  • Indoor use
  • In Stock & Available Immediately
  • Ease of Mounting with mounting holes / brackets
  • Available in different Connector configurations

Electrical Specification

Frequency Range:600MHz – 2700MHz
Coupling Loss:6.20 dB ±0.90dB
Isolation:25.00 dB
VSWR:1.25
Impedance:50 Ohms
Input Power:100 Watts (Avg) / Port
Intermodulation (PIM – 3rd):-160 dBc
(2Tones +43dBm)

Mechanical Specification

Connectors:DIN (D) / Nex10 (X10)
Mini-DIN (MD) / 4.3-10 (D43)
Housing Finish: Aluminum Body
Mounting Method:Mounting Kit
Temperature Range:-20°C to 60°C
Weight: 7.50 lbs
Humidity:5% - 95%
Environment:IP64

ORDERING INFO:

Connector Configuration:

Part#:236X-600-2700-*

* - See Connector Options

Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.

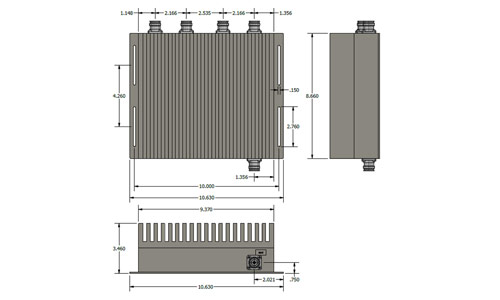

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only.
