4X4 Wideband Hybrid Combiner w/3x Output Ports Internally Terminated

-161dBc PIM, 600-6000 MHz, IP67

244-600-2700 is a Wideband 4×4 Hybrid Combiner with 3 of the Output ports internally terminated with 50 Ohms loads. These can be used to combine any 4 signals in the 600MHz – 6000MHz range, including LTE-LAA, CBRS and C-Band. The combined signals will appear at the output port. Each of the Input Ports can handle up to 100W of power. These hybrid combiners can be used over a wide range of temperature and environmental conditions.

FEATURES

  • Combines 4 signals between 600 – 6000MHz
  • 3 of the Output Ports are internally terminated with 50Ω
  • Covers all Cellular, LTE-LAA, CBRS and C-Bands
  • Best in class isolation between the 4 Input Ports
  • Up t0 100W of Input Power per port
  • Low-PIM & High Power Handling
  • RoHS Complaint
  • Indoor and Outdoor use
  • In Stock & Available Immediately
  • Ease of Mounting with mounting holes / brackets
  • Available in different Connector configurations

Electrical Specification

Frequency Range600MHz – 6000MHz
Coupling Loss6.20 dB ±0.80dB @ 600-2700MHz
6.20 dB ±1.00dB @ 2700-4200MHz
6.35 dB ±1.10dB @ 4200-6000MHz
Isolation25.00 dB @ 600-3800 MHz
24.00 dB @ 3800-6000 MHz
VSWR1.25
Impedance50 Ohms
Input Power100 Watts (Avg) / Port
Intermodulation (PIM - 3rd)-161 dBc
(2Tones +43dBm)

Mechanical Specification

Connectors4.3-10 (D43) /
Nex10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Holes
Temperature Range-30°C to 70°C
Weight10.00 lbs
Humidity5% - 95%
EnvironmentIP67

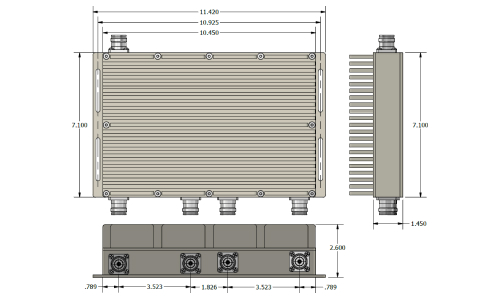

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
