3×3 4.8dB Wideband (LTE-LAA, CBRS & C-Band) Hybrid Combiner

-161dBc PIM, 600-6000 MHz, IP67

226-600-6000 is a 6-Port, 4.8dB Wideband Hybrid Coupler that can used to combine any 2 signals in 600MHz – 6000MHz range, including LTE-LAA, CBRS and C-Band. The combined signal will appear at all the output ports. These are symmetric devices so inputs and outputs can be used interchangeably. It can also be used to split one input signal into 3 output ports. The unused port must be always terminated with a 50Ω Load. These hybrid couplers can be used over a wide range of temperature and environmental conditions.

FEATURES

  • Splits / Combines 3 signals in the 600MHz – 6000MHz
  • Covers all Cellular Bands, LTE-LAA, CBRS and C-Band
  • Best-in-class Isolation between the 3 ports
  • Very low Insertion Loss
  • Available in DIN, Mini-DIN, 4.3-10 or Nex10 Connectors
  • Low-PIM & High Power Handling
  • Ease of Mounting with mounting holes
  • Weatherproof for Outdoor use
  • In Stock and Available Immediately

Electrical Specification

Frequency Range600MHz – 6000MHz
Coupling Loss5.10±1.50dB @ 600-2700
5.00±1.50dB @ 2700-4000
5.10±2.00dB @ 4000-6000
Isolation20.00 dB
VSWR1.35
Impedance50 Ohms
Input Power200 Watts (Avg)
Intermodulation (PIM – 3rd)-161dBc
(2 Tones +43dBm)

Mechanical Specification

ConnectorsDIN (D) / Mini-DIN (MD) /
4.3-10 (D43) / Nex10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Holes
Temperature Range-35°C to 75°C
Weight3.00 lbs
Humidity5% - 95%
EnvironmentIP67

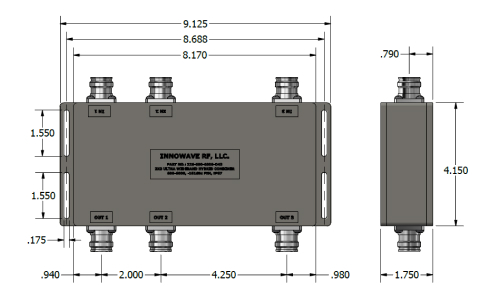

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
