4-Way In-Line Reactive Power Splitters

-161dBc PIM, 600-3800 MHz, IP67

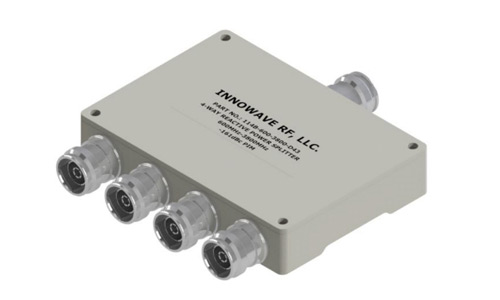

114B-600-3800 is a Low-PIM 4-Way In-Line Reactive Power Splitter, designed to evenly split high power signals between 600MHz and 3800MHz. These splitters cover all the traditional Cellular frequencies, including the CBRS Bands. This unique In-Line structure is Compact and can be used without any bulky inter-connections or undue cable stress. They are rated to be used in extreme weather and environmental conditions. It also has a very low Insertion Loss with an outstanding VSWR at all three ports. Available with different connector options.


  • Wide bandwidth 600 MHz – 3800 MHz to include CBRS band
  • In-Line Reactive Splitter
  • Low Insertion Loss and low VSWR
  • Low PIM, -161dBc
  • RoHS Complaint
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery
  • Superior Construction and High Power Handling


Frequency Range:600 MHz – 3800 MHz
Passband Insertion Loss:0.75 dB
(Over the theoretical loss of 6 dB)
VSWR:≤ 1.40 @ 600-960 MHz
≤ 1.30 @ 960-2700 MHz
≤ 1.35 @ 2700-3800 MHz
Power Handling:300 W (Avg)
PIM – 3rd:-161 dBc (2 Tones +43 dBm)
Temperature Range:-30°C to 75°C
Weight: 1.25 lb
Housing Finish: Aluminum Body
Mounting Method:Mounting Holes
Humidity: 5% - 95%
Environment: IP67

Ordering Info

114B-600-3800-D        — 7/16 DIN Connector

114B-600-3800-MD      — Mini-DIN Connector

114B-600-3800-D43    — 4.3-10 Connector

114B-600-3800-X10    — Nex10 Connector

Please contact our sales department at 737-200-7090 or for any custom requirements.

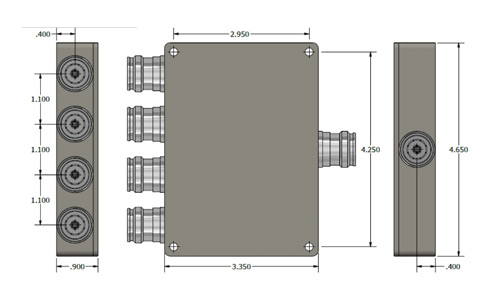

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only.
