114B-600-27004-Way In-Line Reactive Power Splitters
-163dBc PIM, 600-2700 MHz, IP67

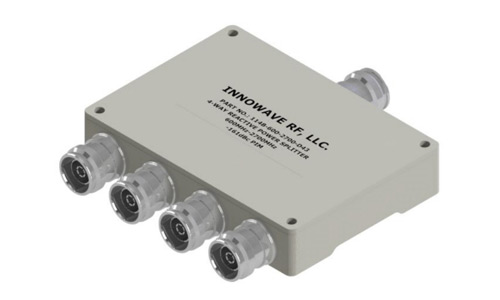

DESCRIPTION
114B-600-2700 is a Low-PIM 4-Way In-Line Reactive Power Splitter, designed to evenly split high power signals between 600MHz and 2700MHz. This unique In-Line structure is Compact and can be used without any bulky inter-connections or undue cable stress. These splitters are rated to be used in extreme weather and environmental conditions. It also has a very low Insertion Loss with an outstanding VSWR at all three ports. Available with different connector options.
FEATURES
- Wide bandwidth 600 MHz – 2700 MHz
- In-Line Reactive Splitter
- Low Insertion Loss and low VSWR
- Low PIM, -163dBc
- RoHS Complaint
- Weatherproof / Outdoor unit
- In Stock to low lead time delivery
- Superior Construction and High Power Handling
Specifications
| Frequency Range: | 600 MHz – 2700 MHz |
| Passband Insertion Loss: | 0.70 dB (Over the theoretical loss of 6.0 dB) |
| VSWR: | ≤ 1.35 @ 600-960 MHz ≤ 1.30 @ 960-2700 MHz |
| Power Handling: | 300 W (Avg) |
| Impedance: | 50Ω |
| PIM – 3rd: | -163 dBc (2 Tones +43 dBm) |
| Temperature Range: | -30°C to 75°C |
| Weight: | 1.00 lb |
| Housing Finish: | Aluminum Body |
| Mounting Method: | Mounting Holes |
| Humidity: | 5% - 95% |
| Environment: | IP67 |

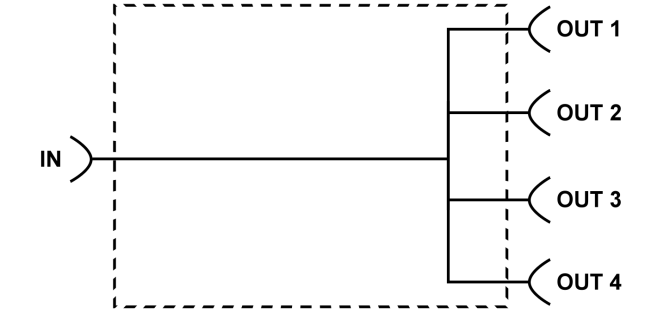

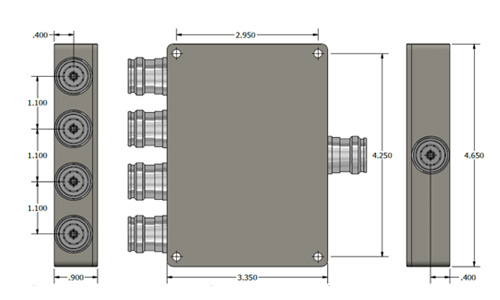

BLOCK DIAGRAM FOR 114B-600-2700
Ordering Info
114B-600-2700-D — 7/16 DIN Connector
114B-600-2700-MD — Mini-DIN Connector
114B-600-2700-D43 — 4.3-10 Connector
114B-600-2700-X10 — Nex10 Connector
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
