114-600-60004-Way Wideband Reactive Power Splitters
-161dBc PIM, 600-6000 MHz, IP67
DESCRIPTION

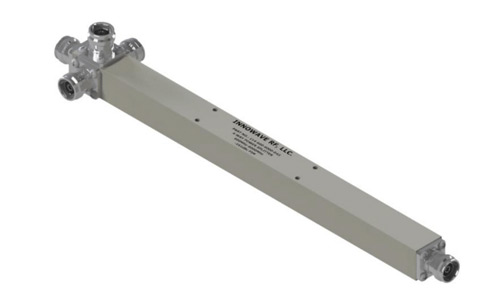

114-600-6000 is a Low-PIM 4-Way Wideband Reactive Power Splitter, designed to evenly split high power signals between 600MHz and 6000MHz. These splitters cover all the traditional Cellular frequencies, including the CBRS and LTE-LAA Bands. Because of their rugged construction, they are indestructible and can be used in extreme weather and environmental conditions. It also has a very low Insertion Loss with an outstanding VSWR at all three ports. Available with different connector options.
FEATURES
- Wide bandwidth 600 MHz – 6000 MHz
- Covers CBRS and LTE-LAA Bands
- Low Insertion Loss and low VSWR
- Low PIM, -161dBc
- RoHS Complaint
- Weatherproof / Outdoor unit
- In Stock to low lead time delivery
- Superior Construction and High Power Handling
- Available in DIN, Mini-DIN, 4.3-10 or Nex10 Connectors
Specifications
| Frequency Range: | 600 MHz – 6000 MHz |
| Passband Insertion Loss: | 0.50 dB @ 600-3800 1.00 dB @ 3800-6000 (Over the theoretical loss of 4.8 dB) |
| VSWR: | ≤ 0.35 @ 600-3800 ≤ 0.40 @ 3800-6000 |
| Power Handling: | 300 W (Avg) |
| Impedance: | 50Ω |
| PIM – 3rd: | -161 dBc (2 Tones +43 dBm) |
| Temperature Range: | -30°C to 75°C |
| Weight: | 0.85 lb |
| Housing Finish: | Aluminum Body |
| Mounting Method: | Mounting Holes |
| Humidity: | 5% - 95% |
| Environment: | IP67 |

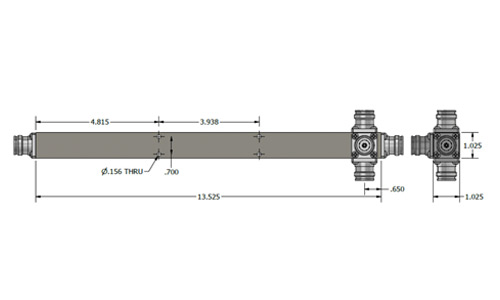

BLOCK DIAGRAM FOR 114-600-6000
Ordering Info
114-600-6000-D — 7/16 DIN Connector
114-600-6000-MD — Mini-DIN Connector
114-600-6000-D43 — 4.3-10 Connector
114-600-6000-X10 — Nex10 Connector
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
