PART #:
113-700-27003-Way Reactive Power Splitters
-163dBc PIM, 698-2700 MHz, IP67
DESCRIPTION
113-700-2700 is a Low-PIM 3-Way Reactive Power Splitter, designed to evenly split high power signals between 698MHz and 2700MHz. Because of their rugged construction, they are indestructible and can be used in extreme weather and environmental conditions. It also has a very low Insertion Loss with an outstanding VSWR at all three ports. Available with different connector options.
FEATURES
- Wide bandwidth 698 MHz – 2700 MHz
- Low Insertion Loss and low VSWR
- Low PIM, -163dBc
- RoHS Complaint
- Weatherproof / Outdoor unit
- In Stock to low lead time delivery
- Superior Construction and High Power Handling
Specifications
| Frequency Range: | 698 MHz – 2700 MHz |
| Passband Insertion Loss: | 0.25 dB (Over the theoretical loss of 4.8 dB) |
| VSWR: | ≤ 1.20 |
| Power Handling: | 500 W (Avg) |
| Impedance: | 50Ω |
| PIM – 3rd: | -163 dBc (2 Tones +43 dBm) |
| Temperature Range: | -30°C to 75°C |
| Weight: | 0.90 lb |
| Housing Finish: | Aluminum Body |
| Mounting Method: | Mounting Holes |
| Humidity: | 5% - 95% |
| Environment: | IP67 |

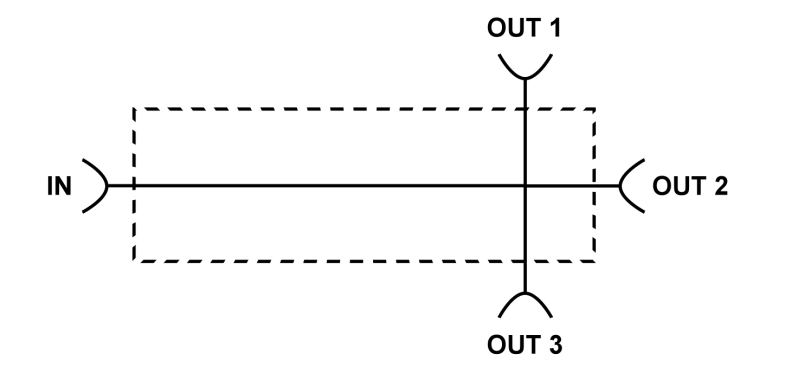

BLOCK DIAGRAM FOR 113-700-2700
Ordering Info
113-700-2700-N — Type-N Connector
113-700-2700-D — 7/16 DIN Connector
113-700-2700-MD — Mini-DIN Connector
113-700-2700-D43 — 4.3-10 Connector
113-700-2700-X10 — Nex10 Connector
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
