3-Way Reactive Power Splitters

-161dBc PIM, 600-3800 MHz, IP67

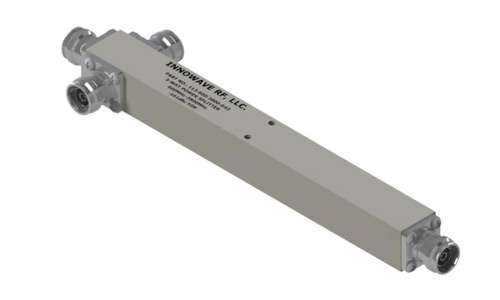

113-600-3800 is a Low-PIM 3-Way Reactive Power Splitter, designed to evenly split high power signals between 600MHz and 3800MHz. Because of their rugged construction, they are indestructible and can be used in extreme weather and environmental conditions. It also has a very low Insertion Loss with an outstanding VSWR at all three ports. Available with different connector options.


  • Wide bandwidth 600 MHz – 3800 MHz
  • Covers CBRS Band
  • Low Insertion Loss and low VSWR
  • Low PIM, -161dBc
  • RoHS Complaint
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery
  • Superior Construction and High Power Handling
  • Available in DIN, Mini-DIN, 4.3-10 or Nex10 Connectors


Frequency Range:600 MHz –3800 MHz
Passband Insertion Loss:0.50 dB
(Over the theoretical loss of 4.8 dB)
VSWR:≤ 1.25
Power Handling:300 W (Avg)
PIM – 3rd:-161 dBc (2 Tones +43 dBm)
Temperature Range:-30°C to 75°C
Weight: 0.90 lb
Housing Finish: Aluminum Body
Mounting Method:Mounting Holes
Humidity: 5% - 95%
Environment: IP67

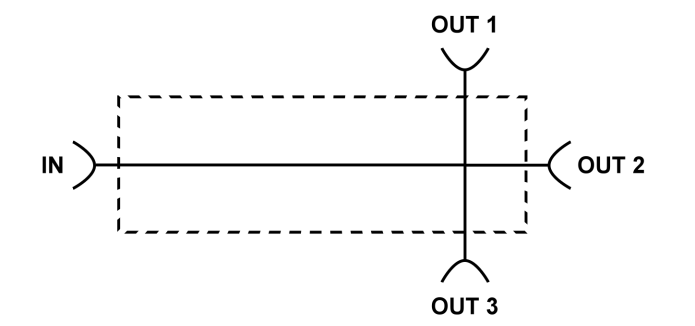

BLOCK DIAGRAM FOR 113-600-3800

Ordering Info

113-600-3800-D          — 7/16 DIN Connector

113-600-3800-MD        — Mini-DIN Connector

113-600-3800-D43      — 4.3-10 Connector

113-600-3800-X10      — Nex10 Connector

Please contact our sales department at 737-200-7090 or for any custom requirements.

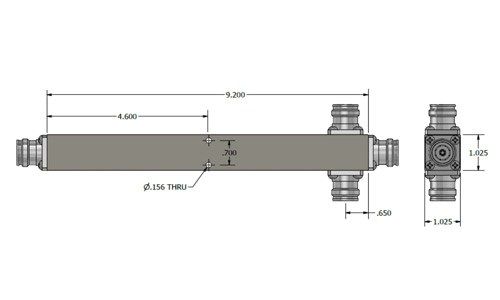

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only.
