PART #:

112B-600-2700

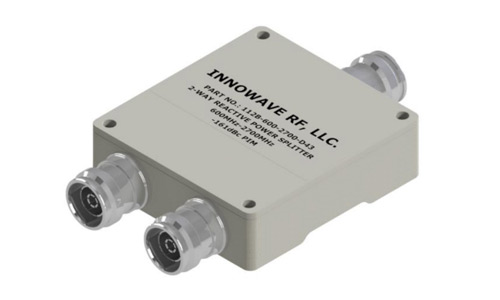

2-Way In-Line Reactive Power Splitters

-163dBc PIM, 600-2700 MHz, IP67

DESCRIPTION

112B-600-2700 is a Low-PIM 2-Way In-Line Reactive Power Splitter, designed to evenly split high power signals between 600MHz and 2700MHz. This unique In-Line structure is Compact and can be used without any bulky inter-connections or undue cable stress. These splitters are rated to be used in extreme weather and environmental conditions. It also has a very low Insertion Loss with an outstanding VSWR at all three ports. Available with different connector options.

FEATURES

  • Wide bandwidth 600 MHz – 2700 MHz
  • In-Line Reactive Splitter
  • Low Insertion Loss and low VSWR
  • Low PIM, -163dBc
  • RoHS Complaint
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery
  • Superior Construction and High Power Handling

Specifications

Frequency Range:600 MHz – 2700 MHz
Passband Insertion Loss:0.25 dB
(Over the theoretical loss of 3 dB)
VSWR:≤ 1.25 @ 600-960 MHz
≤ 1.22 @ 960-2700 MHz
Power Handling:300 W (Avg)
Impedance:50Ω
PIM – 3rd:-163 dBc (2 Tones +43 dBm)
Temperature Range:-30°C to 75°C
Weight: 0.75 lb
Housing Finish: Aluminum Body
Mounting Method:Mounting Holes
Humidity: 5% - 95%
Environment: IP67

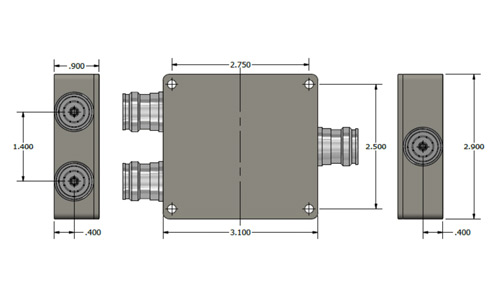

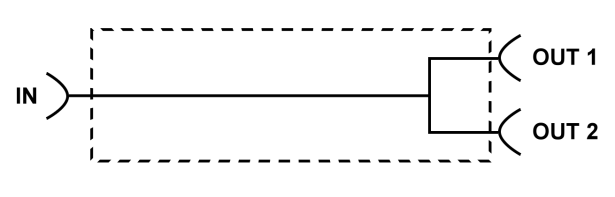

BLOCK DIAGRAM FOR 112B-600-2700

Ordering Info

112B-600-2700-D        — 7/16 DIN Connector

112B-600-2700-MD      — Mini-DIN Connector

112B-600-2700-D43    — 4.3-10 Connector

112B-600-2700-X10    — Nex10 Connector


Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only.
