2-Way Wideband Reactive Power Splitters

-161dBc PIM, 600-6000 MHz, IP67

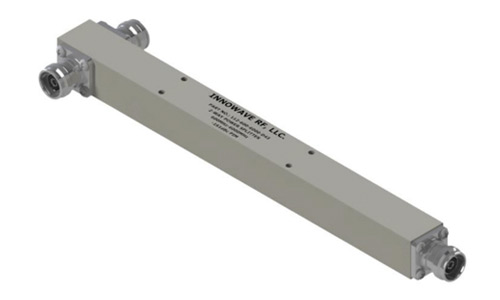

112-600-6000 is a Low-PIM 2-Way Wideband Reactive Power Splitter, designed to evenly split high power signals between 600MHz and 6000MHz. These splitters cover all the traditional Cellular frequencies, including the CBRS and LTE-LAA Bands. Because of their rugged construction, they are indestructible and can be used in extreme weather and environmental conditions. It also has a very low Insertion Loss with an outstanding VSWR at all three ports. Available with different connector options.


  • Wide bandwidth 600 MHz – 6000 MHz
  • Covers CBRS and LTE-LAA Bands
  • Low Insertion Loss and low VSWR
  • Low PIM, -161dBc
  • RoHS Complaint
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery
  • Superior Construction and High Power Handling
  • Available in DIN, Mini-DIN, 4.3-10 or Nex10 Connectors


Frequency Range:600 MHz – 6000 MHz
Passband Insertion Loss:0.35 dB @ 600-3800
0.70 dB @ 3800-6000
(Over the theoretical loss of 3 dB)
VSWR:≤ 1.30 @ 600-3800
≤ 1.35 @ 3800-6000
Power Handling:300 W (Avg)
PIM – 3rd:-161 dBc (2 Tones +43 dBm)
Temperature Range:-30°C to 75°C
Weight: 0.70 lb
Housing Finish: Aluminum Body
Mounting Method:Mounting Holes
Humidity: 5% - 95%
Environment: IP67

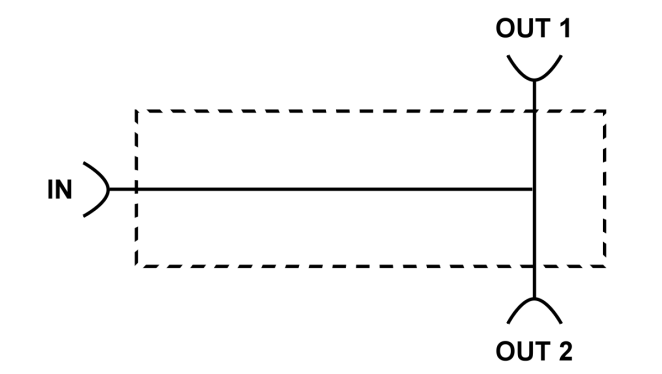

BLOCK DIAGRAM FOR 112-600-6000

Ordering Info

112-600-6000-D          — 7/16 DIN Connector

112-600-6000-MD        — Mini-DIN Connector

112-600-6000-D43      — 4.3-10 Connector

112-600-6000-X10      — Nex10 Connector

Please contact our sales department at 737-200-7090 or for any custom requirements.
