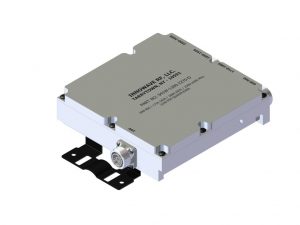

700MHz LTE/GSM / DCS / PCS / 2600MHz LTE Low-PIM Quadplexer

PART #:

941W-1300-2270-D
FEATURES

  • Splits or combines 700MHz LTE & GSM Band (698MHz-798MHz), 1900MHz DCS Band (1710MHz-1805MHz), 1900MHz PCS Band (1850MHz-1995MHz) and 2600MHz LTE Band (2500MHz-2690MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Low-PIM with High Power Handling
  • ROHS Complaint
  • Ease of Mounting with mounting holes
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency BandsPORT 1PORT 2PORT 3PORT 4
698MHz - 960MHz1710MHz - 1805MHz1850MHz - 1995MHz2500MHz - 2690MHz
Insertion Loss≤ 0.30 dB (Typ)≤ 0.60 dB (Typ)≤ 0.60 dB (Typ)≤ 0.30 dB (Typ)
Pass Band Ripple≤ 0.20 dB (Max)≤ 0.50 dB (Max)≤ 0.50 dB (Max)≤ 0.20 dB (Max)
Isolation≥ 60 dB≥ 60 dB≥ 60 dB≥ 60 dB
Return Loss≤ -20 dB (Typ) @ RT≤ -20 dB (Typ) @ RT≤ -20 dB (Typ) @ RT≤ -20 dB (Typ) @ RT
Rejection≥80dB @ 1850-1995 ≥80dB @ 2500-2690 ≥80dB @ 1850-1995 ≥80dB @ 2500-2690 ≥80dB @ 2500-2690 ≥80dB @ 800-1805 ≥80dB @ 1850-1995 ≥80dB @ 800-1805
Impedance50 Ohms50 Ohms50 Ohms50 Ohms
Input Power200 Watts (Avg)200 Watts (Avg)200 Watts (Avg)200 Watts (Avg)
Intermodulation (PIM-3rd)*-157dBc (Typ) (2 Tones +43 dBm)-157dBc (Typ) (2 Tones +43 dBm)-157dBc (Typ) (2 Tones +43 dBm)-157dBc (Typ) (2 Tones +43 dBm)
Lightning Protection8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)
MTBF Hours≥ 500,000≥ 500,000≥ 500,000≥ 500,000

Mechanical Specification

Connectors: 7/16 DIN (Female) Type-N (Female) option available
Housing Finish: Aluminum Body
Mounting Method: Mounting Holes
Temperature Range:-20°C to 60°C
Humidity: 5% – 95%
Environment:IP67

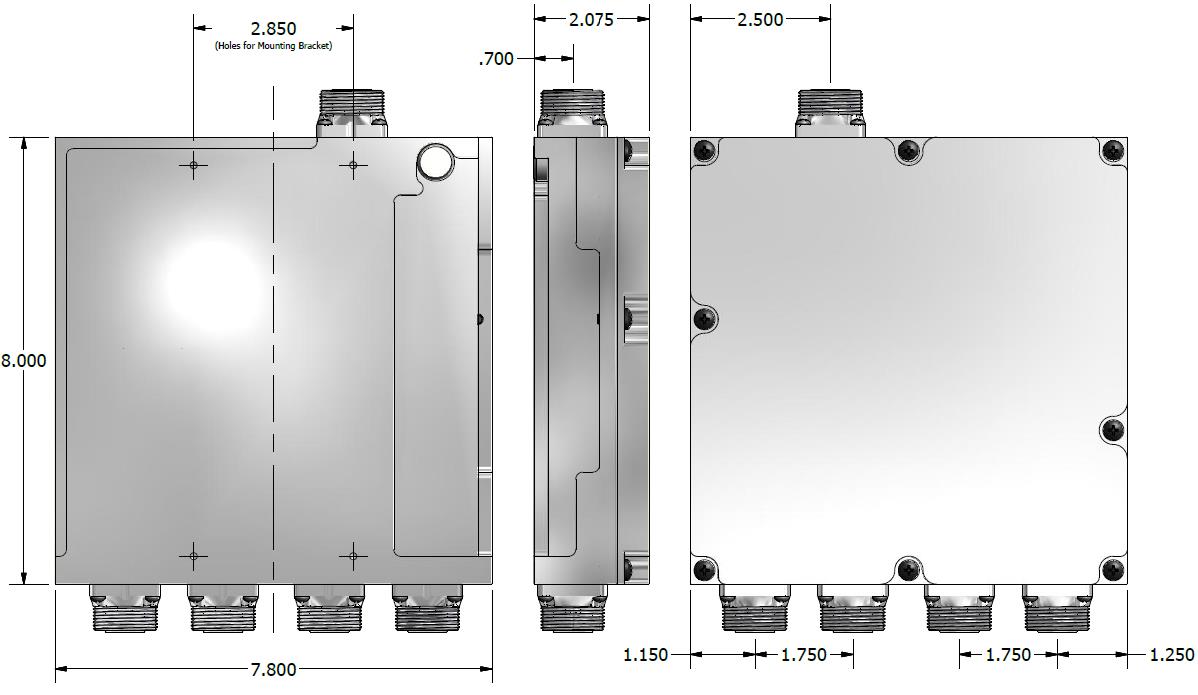

Dimensions for 941LW-1300-2270-D

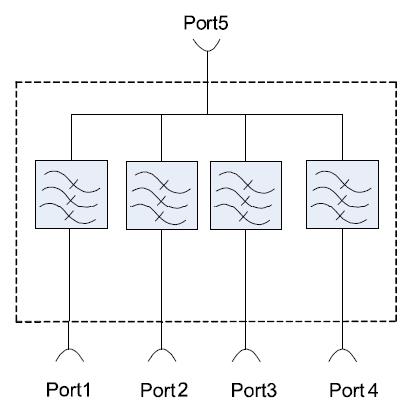

Block Diagram Representation for 941LW-1300-2270-D

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
