700MHz LTE / 850MHz CDMA / 1900MHz PCS-AWS Band Triplexer

PART #:

931-820-2140 , 932-820-2140
FEATURES

  • Splits or combines the 700MHz LTE Band (698MHz-798MHz), 850MHz CDMA Band (824MHz-960MHz) and PCS/AWS-1/AWS-3 Band (1695MHz-2180MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Low-PIM with High Power Handling
  • Ease of Mounting with mounting holes and brackets
  • RoHS Complaint
  • Weatherproof for Outdoor use
  • In Stock and Available Immediately

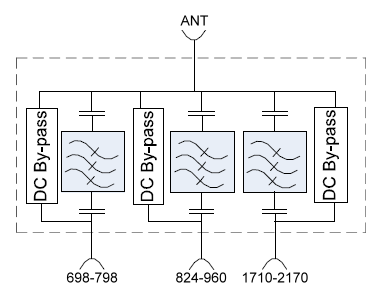

931-820-2140

Electrical Specification

Frequency Bands700 MHz LTE850 MHz CDMA/GSMPCS/AWS-1/AWS-3
698MHz - 798MHz824MHz - 960MHz1695MHz - 2180MHz
Passband Insertion Loss0.35 dB (Typ)0.35 dB (Typ)0.35 dB (Typ)
Isolation≥ 60 dB≥ 60 dB≥ 60 dB
Return Loss-20 dB (Min)-20 dB (Min)-20 dB (Min)
Impedance50 Ohms50 Ohms50 Ohms
Input Power400 Watts (Avg); 3000 Watts (Peak)400 Watts (Avg); 3000 Watts (Peak)400 Watts (Avg); 3000 Watts (Peak)
Intermodulation (PIM - 3rd) ***-161dBc (Min) (2 Tones +43 dBm)-161dBc (Min) (2 Tones +43 dBm)-161dBc (Min) (2 Tones +43 dBm)
DC Pass Current3000mA (Typ)3000mA (Typ)3000mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC801-5)8/20S 10kA Pulse (IEC801-5)8/20S 10kA Pulse (IEC801-5)
MTBF Hours≥ 500,000≥ 500,000≥ 500,000

Mechanical Specification

ConnectorsType-N (N) / DIN (D) / Mini-DIN (MD) / 4.3-10 (D43)
Housing FinishAluminum Body
Mounting MethodMounting Holes
Temperature Range-30°C to 60°C
Humidity5% – 95%
EnvironmentIP67

Dimensions for 931-820-2140-D

Dimensions for 932-820-2140-D

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
