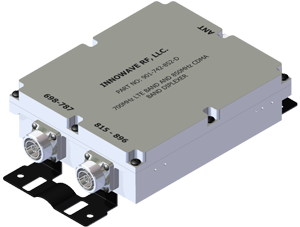

700 MHz LTE Band and 850 MHz CDMA Band Diplexer / Combiner

PART #:

901-742-852

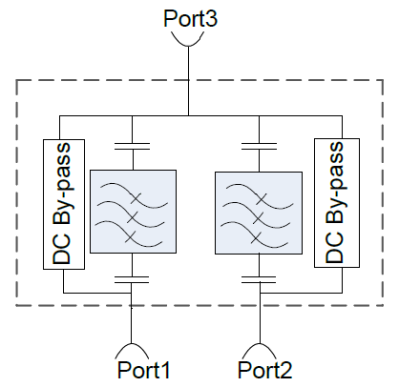

FEATURES

  • Splits or combines the 700 MHz LTE Band (698MHz-787MHz) and 850 MHz CDMA Band (815MHz-896MHz)
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Low-PIM with High Power Handling
  • Ease of Mounting with mounting holes and brackets
  • Single (901 Series) and Dual (902 Series) units available
  • RoHS Complaint
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery

Electrical Specification

Frequency Bands700MHz LTE Band 698MHz-787MHz 850MHz CDMA Band 815MHz-896MHz
Passband Insertion Loss0.20 dB0.20 dB
Isolation≥70dB @ 815MHz - 896MHz≥70dB @ 698MHz - 787MHz
Return Loss21 dB21 dB
Impedance50 Ohms50 Ohms
Input Power400 Watts (Avg); 2500 Watts (Peak)400 Watts (Avg); 2500 Watts (Peak)
DC Pass Current4000 mA (Typ)4000 mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)8/20S 10kA Pulse (IEC 801-5)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)-161 dBc (2 Tones +43 dBm)

Mechanical Specification

Connectors7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing FinishAluminum Body
Mounting MethodMounting Panel
Temperature Range-35°C to 75°C
Relative Humidity5% - 95%
EnvironmentIP67

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
