700 LTE / 850 CDMA, GSM / PCS / AWS-1,AWS-3 Quadplexer

PART #:

941-800-1930 , 942-800-1930
FEATURES

  • Splits or combines the 700MHz LTE Band (698MHz-787MHz), 850MHz CDMA, GSM Band (806MHz-896MHz), PCS (1850MHz-2000MHz), AWS-1, AWS-3 Band (1695MHz-1780MHz & 2110MHz-2180MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Complaint
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

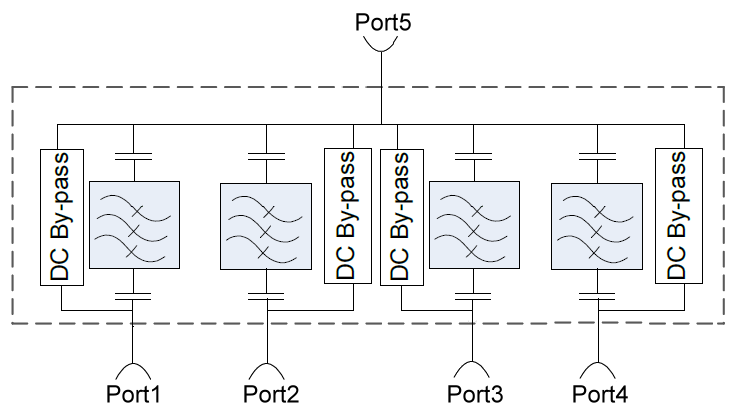

941-800-1930

Electrical Specification

Frequency Bands700LTECDMA-850/850-GSMPCSAWS-1/AWS-3
Passband Insertion Loss0.30 dB (Typ)0.30 dB (Typ)0.30 dB (Typ)0.30 dB (Typ)
Isolation≥ 60 dB≥ 60 dB≥ 60 dB≥ 60 dB
Return Loss20 dB (Min)20 dB (Min)20 dB (Min)20 dB (Min)
Impedance50 Ohms50 Ohms50 Ohms50 Ohms
Input Power250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)
Intermodulation (PIM-3rd)*-161dBc (Min) (2 Tones +43 dBm)-161dBc (Min) (2 Tones +43 dBm)-161dBc (Min) (2 Tones +43 dBm)-161dBc (Min) (2 Tones +43 dBm)
Lightning Protection8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)
MTBF Hours≥ 500,000≥ 500,000≥ 500,000≥ 500,000

Mechanical Specification

ConnectorsType-N (N) / DIN (D) / Mini-DIN (MD) / 4.3-10 (D43)
Housing FinishAluminum Body
Mounting MethodMounting Holes
Temperature Range-20°C to 60°C
Humidity5% – 95%
EnvironmentIP67

Dimensions for 941-800-1930-D

Dimension for 942-800-1930-D

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
