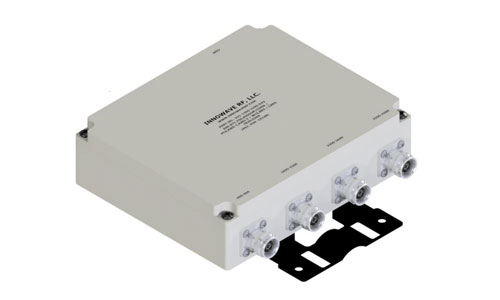

941C-1300-3390 / 942C-1300-3390

600-B71,700,850GSM&CDMA / PCS,AWS-1,AWS-3 / WCS,BRS / CBRS Quadplexer / Multi-Band Combiner

FEATURES

  • Splits or combines 600-B71, 700LTE, 850-GSM, 850-CDMA Bands (600MHz-896MHz), PCS, AWS-1, AWS-3 Bands (1695MHz-2280MHz), WCS, 2600LTE Bands (2300MHz-2690MHz) and CBRS Band (3500-4200)
  • Compact Version
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Nex10 Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Complaint
  • Weatherproof for Outdoor installation

Electrical Specification

Frequency Bands600,700,850
600MHz - 896MHz		PCS,AWS-1,AWS-3
1695MHz - 2200MHz		WCS, BRS
2300MHz - 2690MHz		CBRS
3500MHz - 4200MHz
Passband Insertion Loss0.30 dB
Isolation≥40 dB
Return Loss21 dB
Impedance50 Ohms
Input Power250 Watts (Avg); 2500 Watts (Peak)
DC Pass Current4000 mA (Typ)
Intermodulation (PIM-3rd)-160dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10KA Pulse (IEC801-5)
MTBF Hours≥ 500,000

Mechanical Specification

Connectors: 7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Nex10 (X10)
Housing Finish: Aluminum Body
Mounting Method:Mounting Panel
Weight: 3.50lbs
Temperature Range:-35°C to 75°C
Humidity:5% - 95%
Environment: IP67

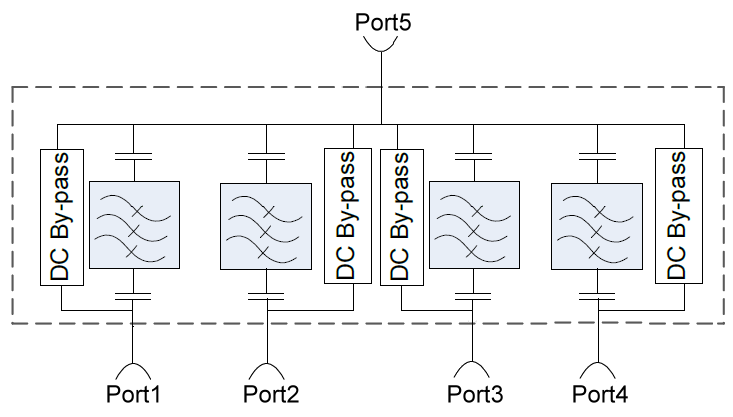

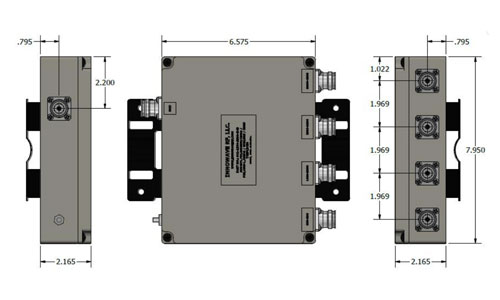

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
