PART #:

303-2

2W Terminations / Loads

DC-6000MHz, IP67

DESCRIPTION

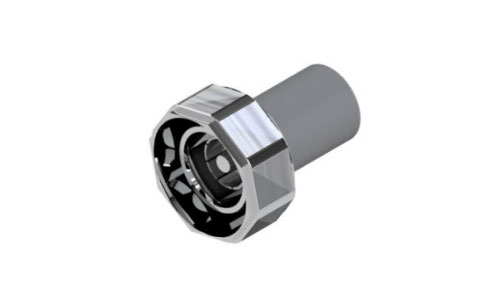

303-2 Series of RF Terminations can be used for a broad range of applications operating from DC to 6 GHz and is rated at 2 Watts power. These are precision machined, robust and can be used over a wide range of temperature and environmental conditions. They are perfect for both Indoor and Outdoor DAS applications.

FEATURES

  • Superior Mechanical Construction
  • 2 Watts Power Handling
  • Low VSWR from DC to 6GHz
  • RoHS Complaint
  • In stock and available immediately
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors

*** ORDERING INFO:

Part #: 303-2-*

(* - Connector Option)

APPLICATIONS:

  • Indoor & Outdoor DAS
  • Wi-Fi / WiMAX
  • Cellular and GPS
  • Communication Transmitter and Receiver
  • Public Safety and ISM
  • Instrumentation

ELECTRICAL & MECHANICAL SPECIFICATIONS:

Frequency Range:DC – 6 GHz
VSWR≤ 1.20 (Typ) @ DC-3GHz
≤ 1.22 (Typ) @ 3-6GHz
Input power: 2 Watts (Avg)
Impedance:50 Ω
Connectors Options:7/16 DIN (D)
Mini-DIN (MD)
4.3-10 (D43)
Type-N (N)
Housing Finish: Aluminum Body
Mounting Method:Mounting Panel
Temperature Range:-35°C to 75°C
Weight: 0.25lbs
Relative Humidity:5% - 95%
Environment: IP67

Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.

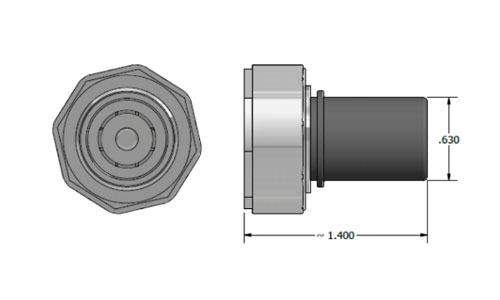

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only.
