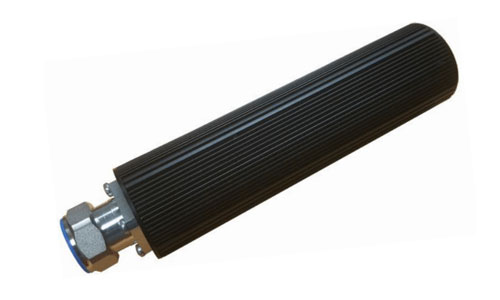

PART #:

301L-40

40W Low-PIM Terminations / Loads

-163dBc PIM, 600-2700 MHz, IP67

DESCRIPTION

301L-40 Series of Low-PIM RF Terminations operates from 600MHz to 2700MHz and is rated at 40 Watts of power. These terminations are mechanically well constructed to allow maximum heat dissipation to sustain long life by preventing temperature hot spots. These are precision machined, robust and can be used over a wide range of temperature and environmental conditions. They are perfect for both Indoor and Outdoor DAS applications.

FEATURES

  • Low-PIM performance, -163dBc (min)
  • Superior Mechanical Construction
  • 40 Watts Power Handling
  • Low VSWR from 600MHz to 2700MHz
  • RoHS Complaint
  • In stock and available immediately
  • Available in different connector configurations

BLOCK DIAGRAM FOR 301L-40 SERIES

*** ORDERING INFO:

Part #: 301L-40-*

(* - Connector Option)

ELECTRICAL & MECHANICAL SPECIFICATIONS:

Frequency Range:600MHz – 2700MHz
VSWR≤ 1.22 (Typ)
Input power: 40 Watts (Avg); 500W (Peak)
Impedance:50 Ω
Intermodulation (PIM - 3rd):-163 dBc (Min)
(2Tones +40dBm)
Connectors:7/16 DIN (D) / Mini-DIN (MD)
4.3-10 (D43) / Nex10 (x10)
Type-N (N)
Housing Finish: Aluminum Body
Mounting Method:Mounting Panel
Temperature Range:-35°C to 75°C
Weight: 2.50 lbs
Relative Humidity:5% - 95%
Environment: IP67

Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.

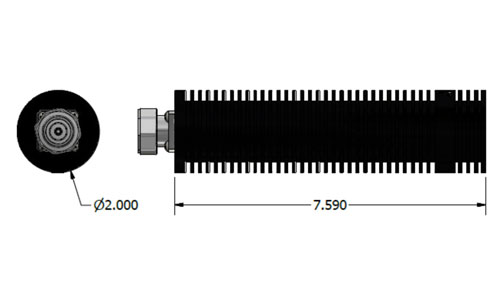

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only.
